ideal number of bins for histogram

2 methods to automatically find the ideal number of bins for your histograms

Antoine Neuraz
10-02-2018

Prerequisites

Required


library(ggplot2)

Optional


library(patchwork) # used to compose the plots for the comparisons
library(hrbrthemes) # used for the theme of plots
theme_set(theme_ipsum()) # set the plot theme to theme_ipsum by default

Data


data("mtcars")

Methods to estimate the number of bins

Freedman-Diaconis rule (“Wikipedia - Freedman Diaconis Rule” 2018)

the bin-width is given by \(h=2×IQR×n^{-1/3}\) where IQR is the interquartile range. the number of bins is then: \((max - min) /(2×IQR×n^{-1/3})\)


#' bins_fd
#' @description returns the number of bins according to the Freedman-Diaconis rule
#' @param vec numeric vector
#' @return number of bins
bins_fd <- function(vec) {
  diff(range(vec)) / (2 * IQR(vec) / length(vec)^(1/3))
}

\(\sqrt{n}\) rule

the number of bins corresponds to the square root of the number of observations


#' bins_sqrt
#' @description returns the square root of the length of a vector
#' @param vec numeric vector
#' @return number of bins
bins_sqrt <- function(vec) {
  sqrt(length(vec))
}

Usage


ggplot(data = mtcars, aes(x = mpg)) +
  geom_histogram(bins = bins_fd(mtcars$mpg))

Comparisons between the different methods


#' histogram_density
#' @description plot the histogram of a variable with density plot
#' @params data : a data.frame
#' @params var : the variable to plot
#' @params bins_fn : function to compute the number of bins (if `NULL` defaults to 30)
#' @params title : title of the plot
#' @return ggplot object
histogram_density <- function(data, var, bins_fn = NULL, title = "") {
  if (is.null(bins_fn)) {
    bins <- 30
  } else {
    bins <- bins_fn(data[[var]])
  }
  ggplot(data = data, aes_string(x = var)) + geom_density(fill = "red", alpha = 0.2) +
    geom_histogram(aes(y = ..density..),
      bins = bins,
      alpha = 0.5
    ) +
    ggtitle(title)
}

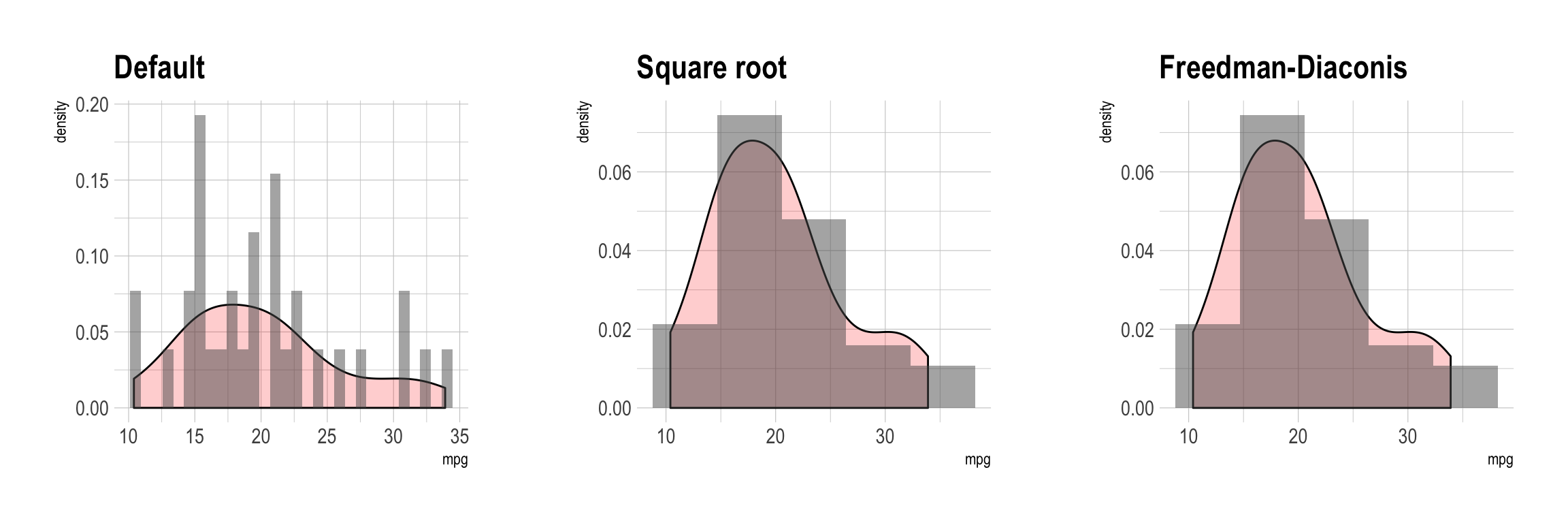

var <- "mpg"
a <- histogram_density(mtcars, var, bins_fn = NULL, title = "Default")
b <- histogram_density(mtcars, var, bins_fn = bins_sqrt, title = "Square root")
c <- histogram_density(mtcars, var, bins_fn = bins_fd, title = "Freedman-Diaconis")

a + b + c + patchwork::plot_layout(ncol = 3)

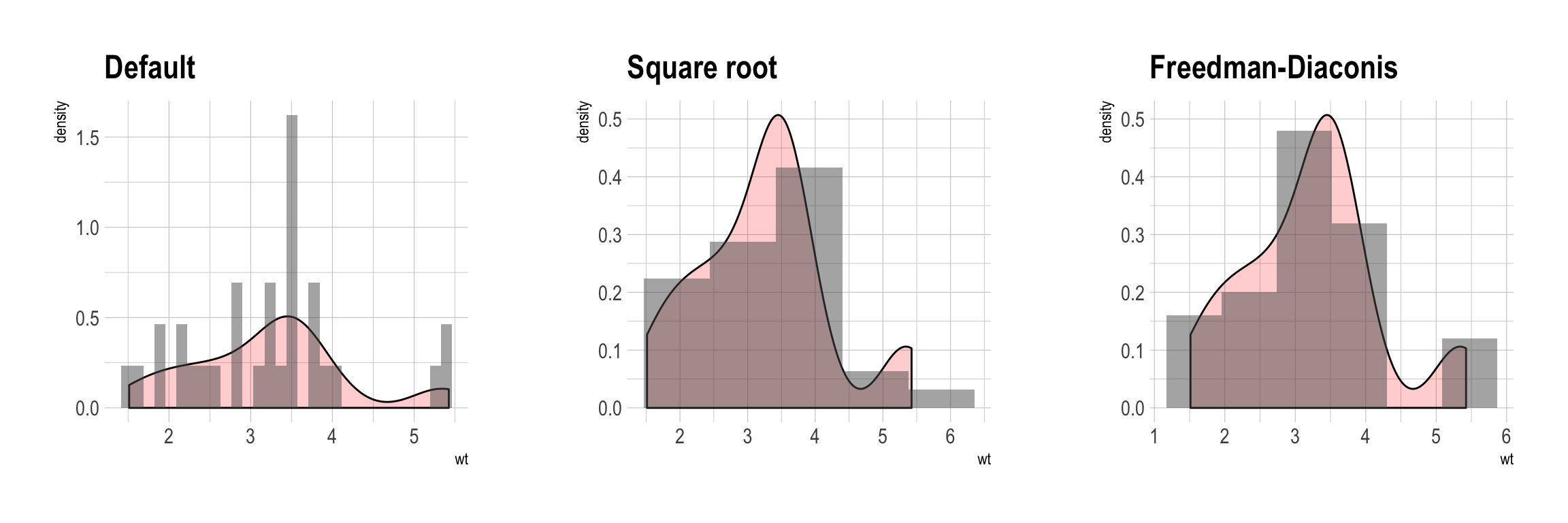

var <- "wt"
a <- histogram_density(mtcars, var, bins_fn = NULL, title = "Default")
b <- histogram_density(mtcars, var, bins_fn = bins_sqrt, title = "Square root")
c <- histogram_density(mtcars, var, bins_fn = bins_fd, title = "Freedman-Diaconis")

a + b + c + patchwork::plot_layout(ncol = 3)
